| MANUFACTURER | TEREDO |
| MODEL | HIDRA 310 |
| YEAR | 1990 |
| WORKING HOURS | - |

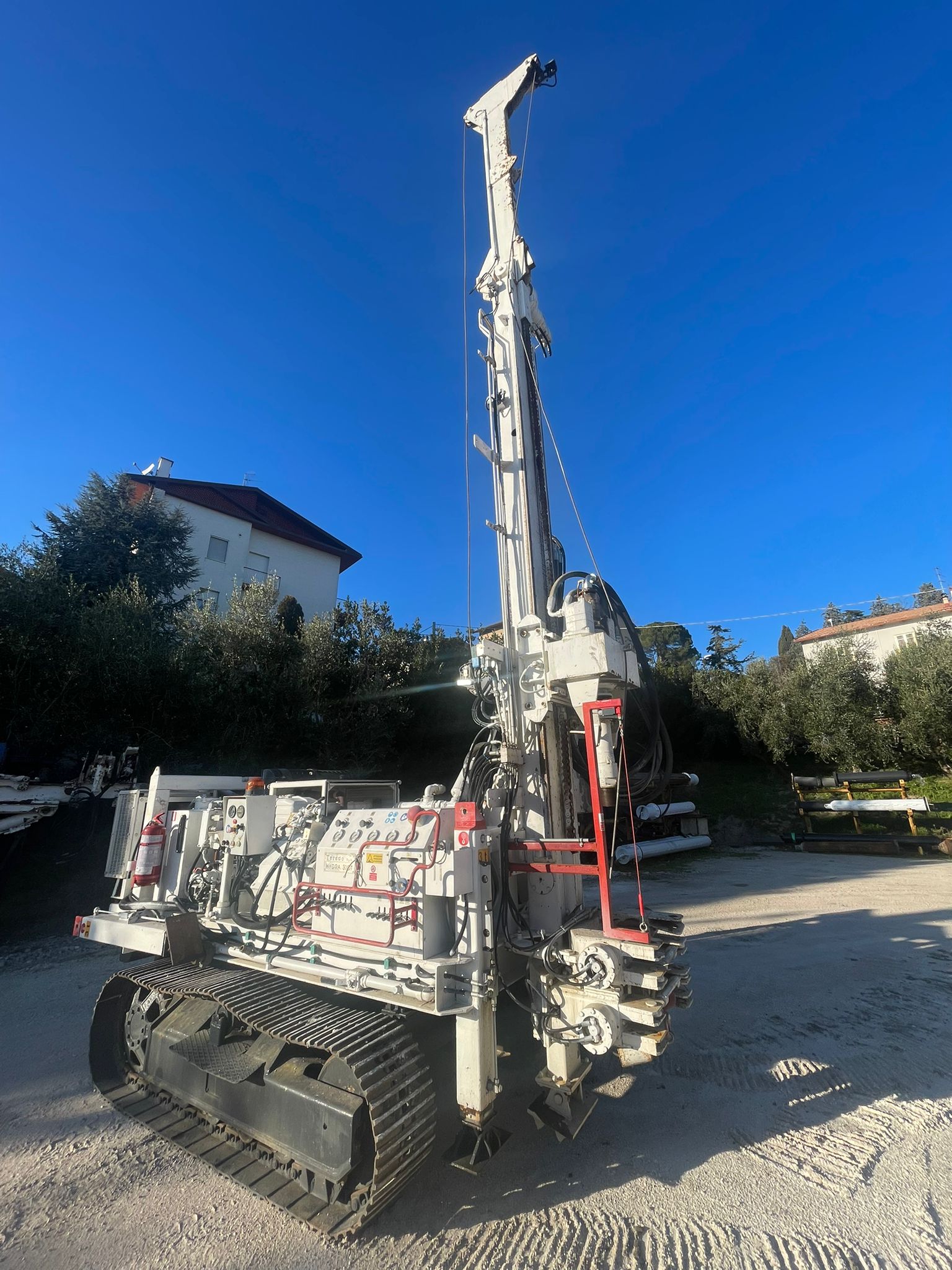

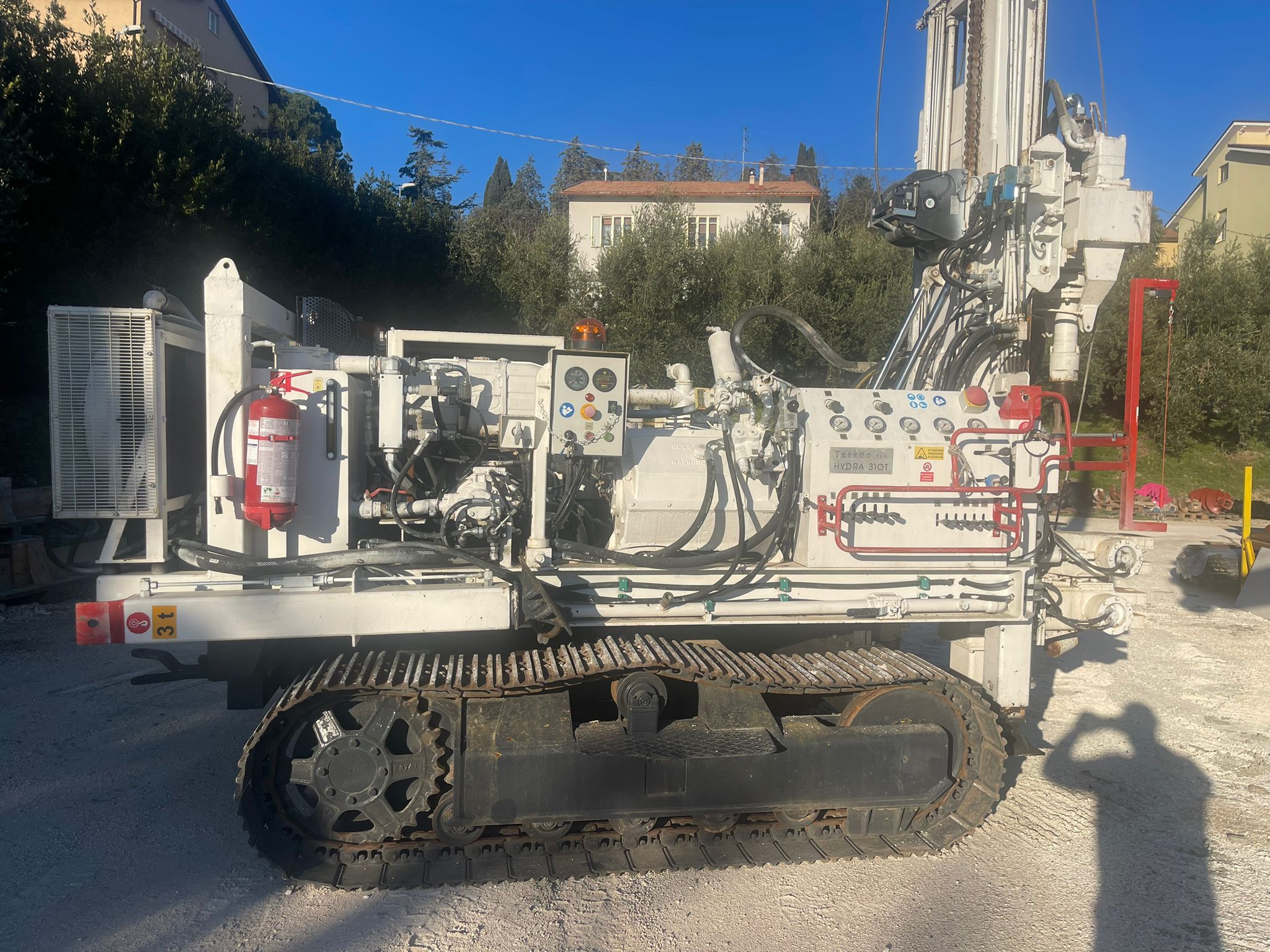

Used TEREDO HIDRA 310 Available
Water wells drilling rig
Complete with 600 lt. Ellettari brand mud pump
MAST
Total length: 6000 mm
Rotation head stroke: 3500 mm
Extraction force: 50 kN
Thrust force: 40 kN

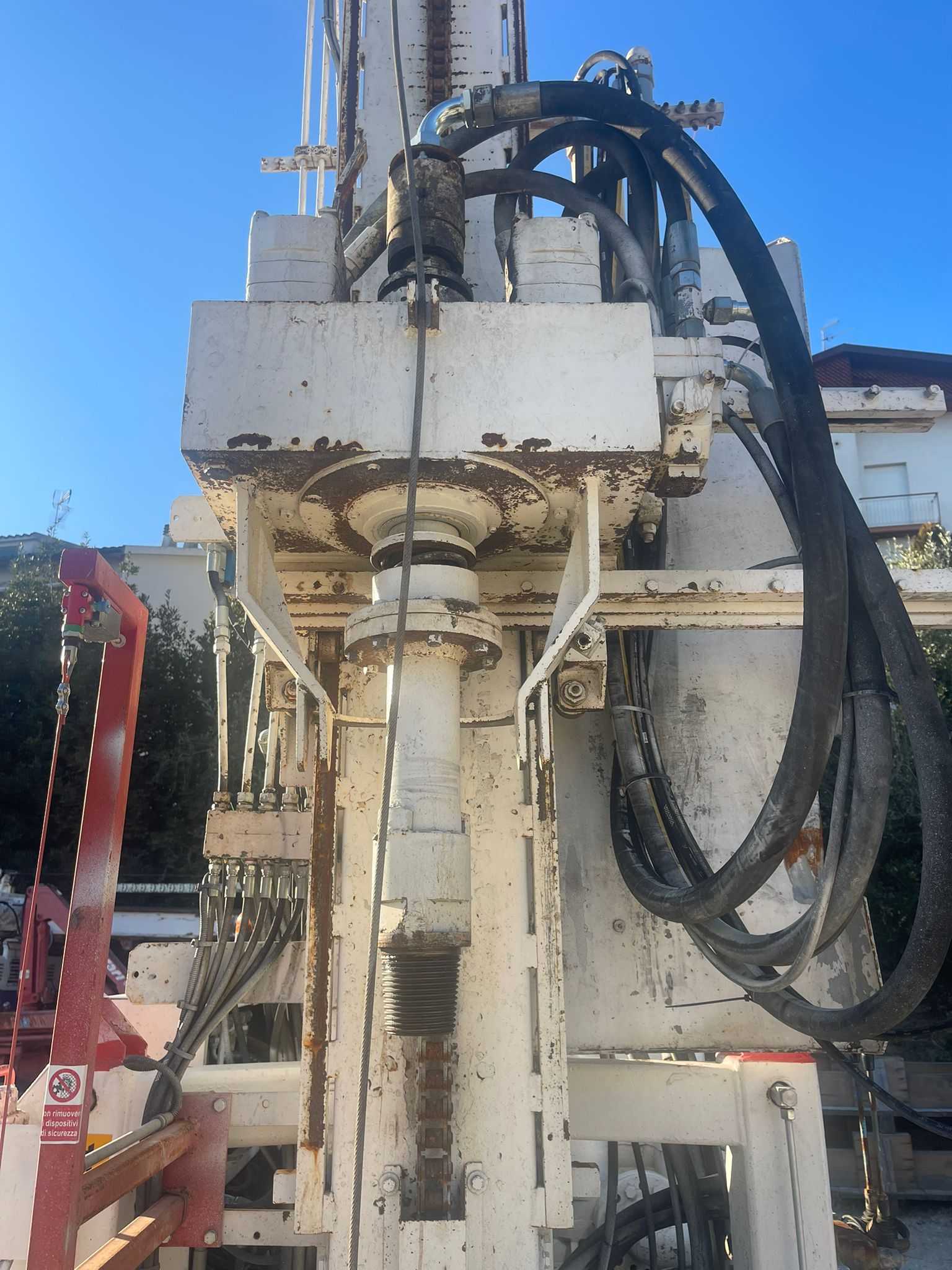

ROTARY HEAD
Maximum torque: 1050 daNm
Spindle speed: 120 rpm

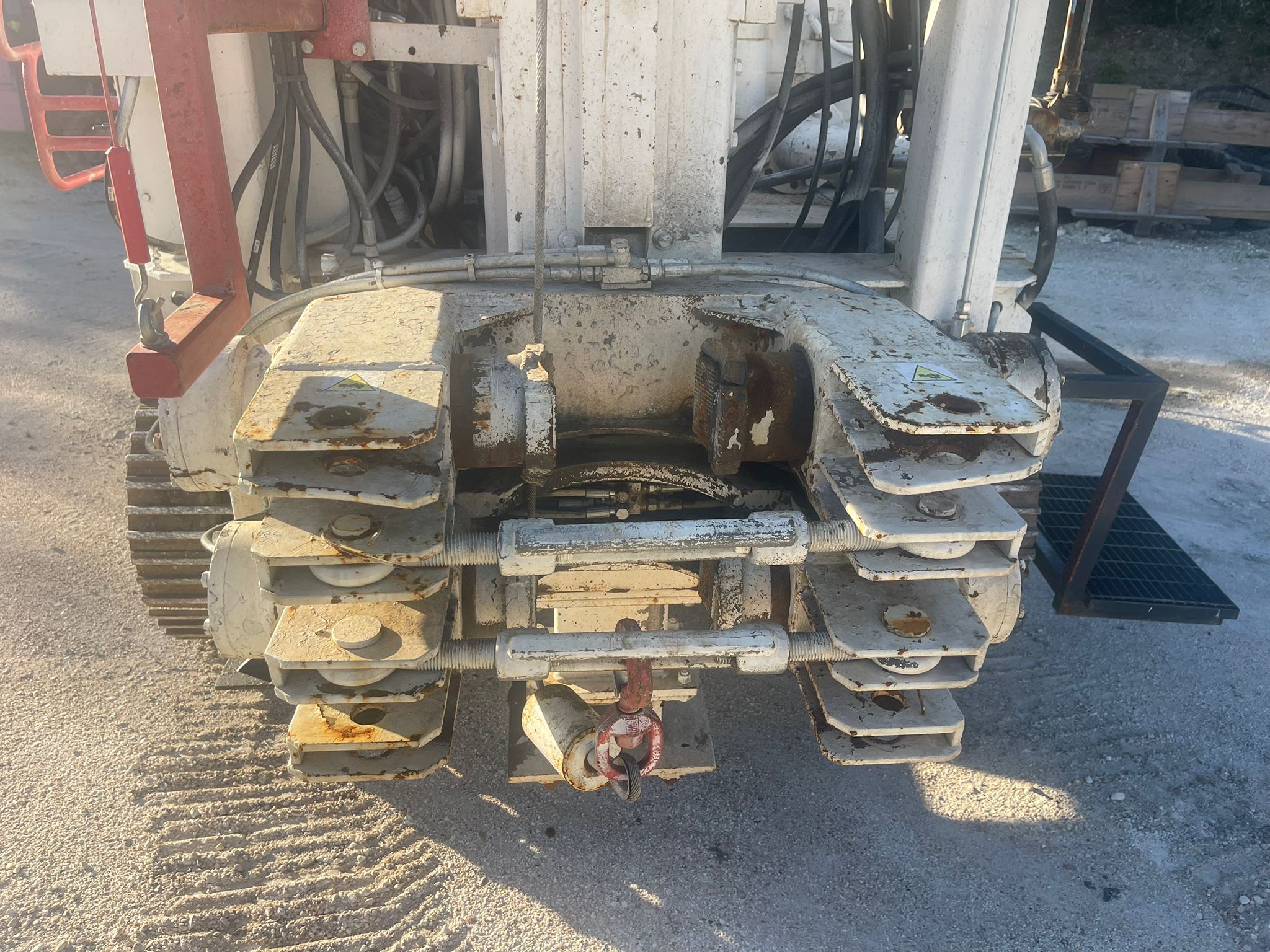

CLAMPS
Clamping capacity: 280 mm
Adjustable maximum clamping force: 157 kN
Clamping torque: 54 kNm
DIESEL ENGINE
Brand and model: VM SUN 4105 T
Power: 105 HP
Diesel tank capacity: 80 liters
HYDRAULIC SYSTEM
Variable displacement pump: 45 cm³
Service gear pump: 38+11 cm³
Hydraulic oil tank capacity: 250 liters
