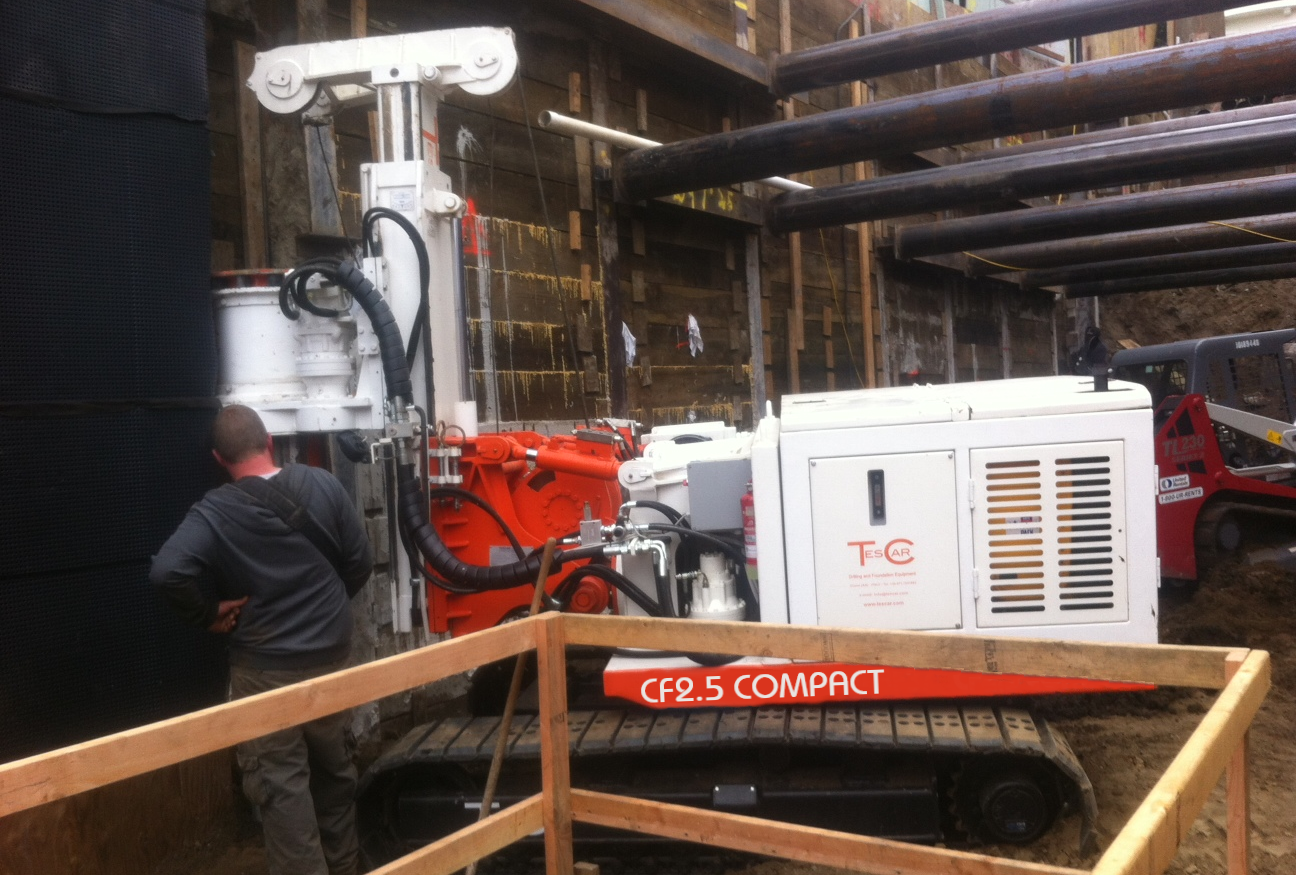

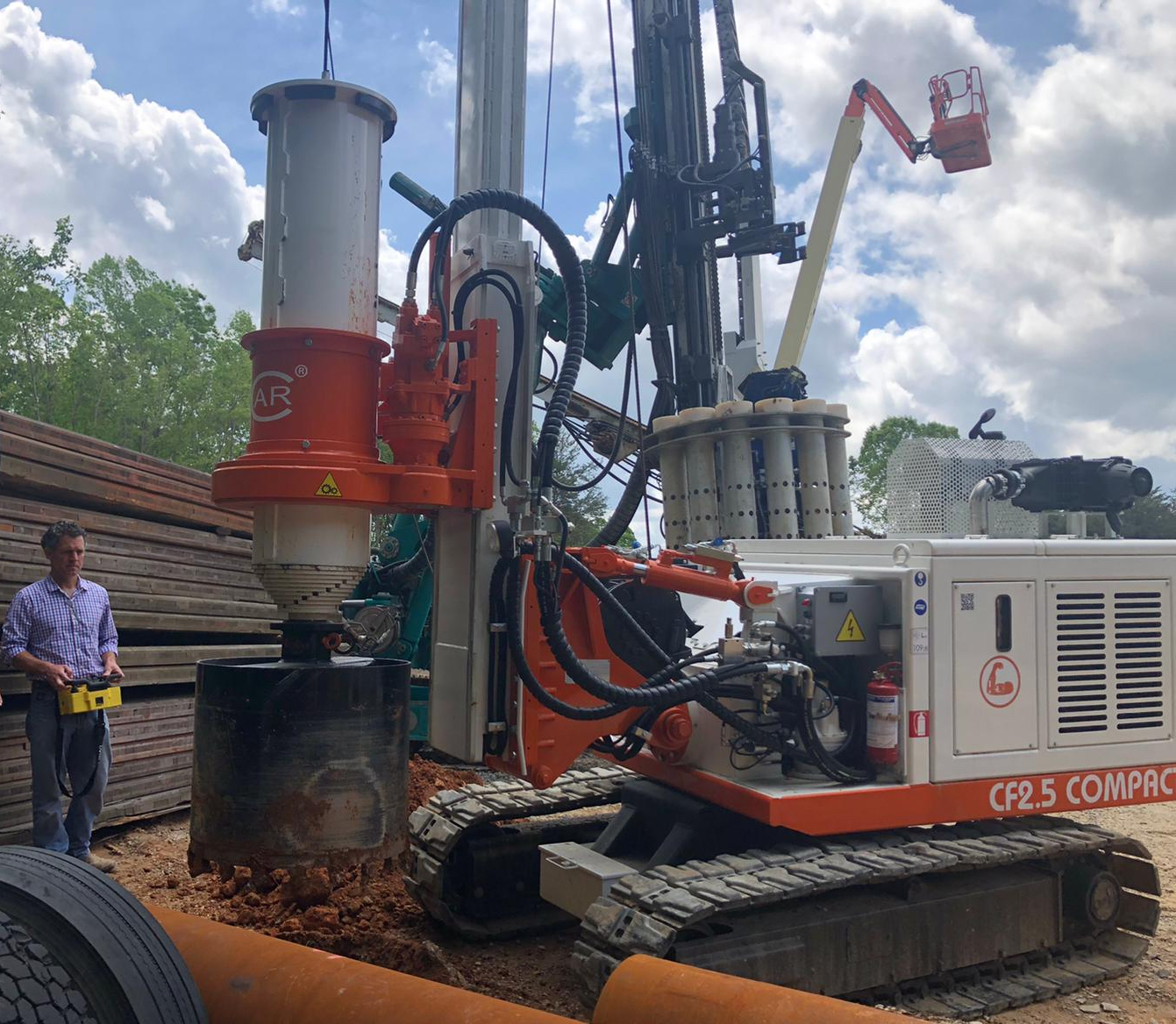

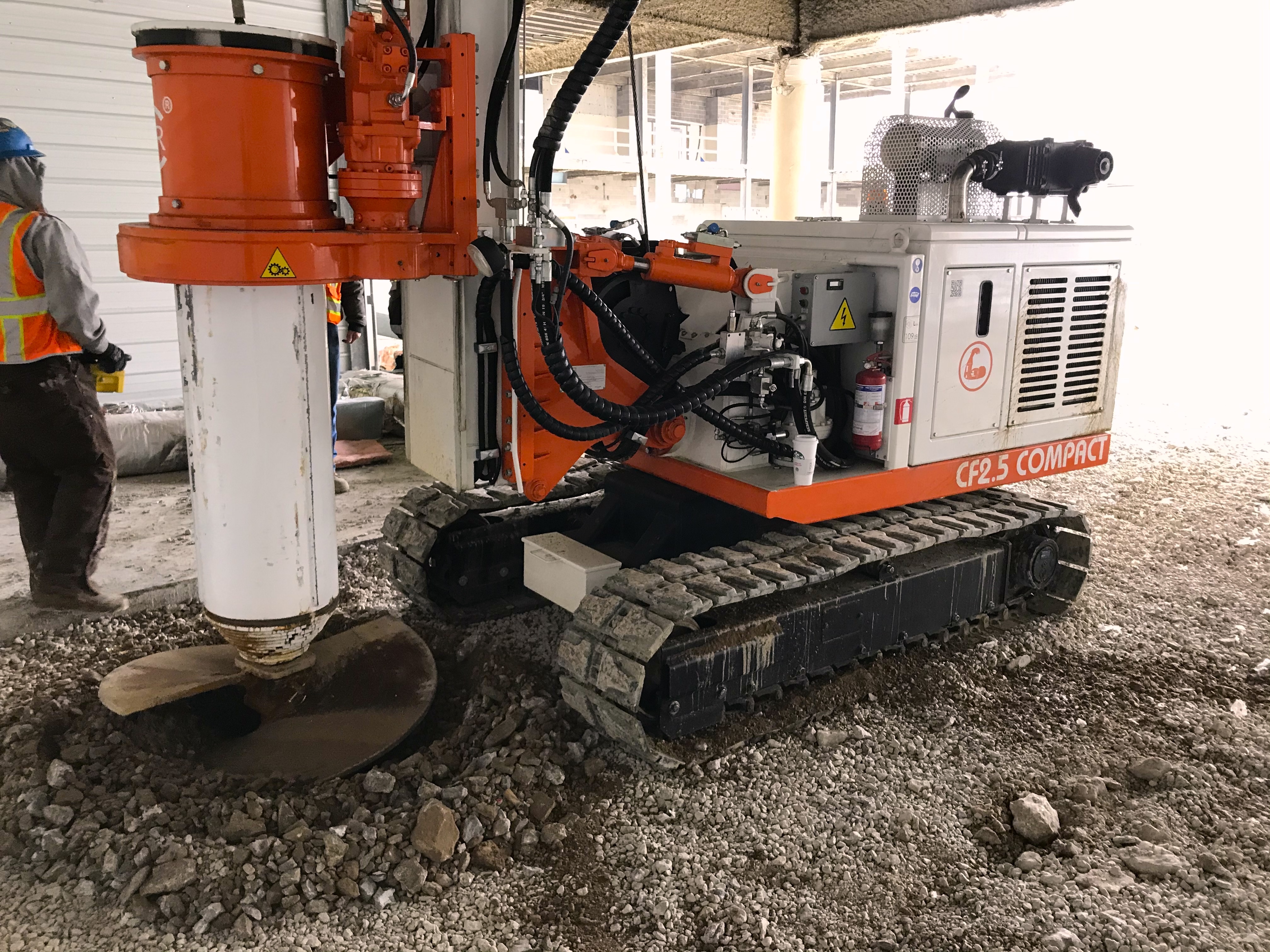

Hydraulic piling rig CF2.5 COMPACT

The "SMALL WONDER" (as it's called by our American customers) is a very compact and versatile machine, provided with radio remote controller to be operated at a safety distance in case of particularly dangerous working conditions. The power pack is indipendent and removable to be placed outside buildings without  a suitable air flow to guarantee the safety of the operator. The CF2.5 COMPACT is also provided with a special "counter-slide" device to lower the mast group to achieve the lowest headroom working position. It's also equipped with a 2 sections telescopic mast to work with a 15 or 18 m locking kelly bar, with the possibility to close down the 2 telescopic sections to reduce the total height and work in low headroom position even under 2400mm with a special "short" kelly bar for 5 m depth. With a max width of 1550 mm, the CF2.5 COMPACT can move in the narrowest places and restricted areas. The undercarriage is provided with rubber crawlers to work over fragile or luxury floors wiothout problem.
