CF8 PLUS





TORQUE 85 kNm
ENGINE POWER 120 kW
MAX DEPTH 35 m
MAX DIAMETER 1300 mm
TOTAL WEIGHT

22 t

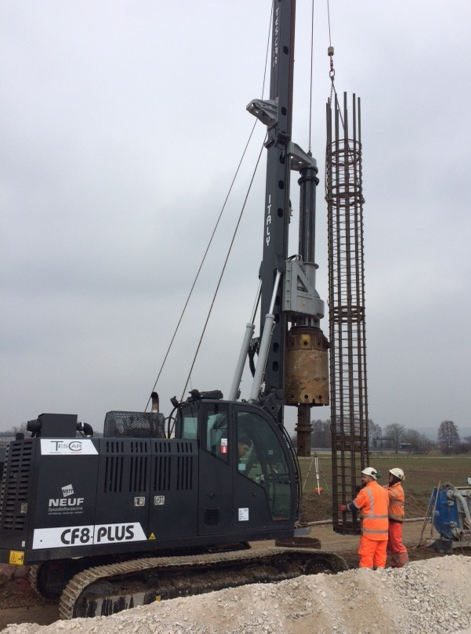

Hydraulic piling rig CF8 PLUS

The new CF8 PLUS is powered by a Cummins Tier4 engine which grant the hydraulic system enough power to achieve (on demand) even 100 kNm torque. The machine is then provided with cinematic parallelogram and a 2 sections mast to work with a 35 m locking kelly bar, with the possibility to remove the upper mast section to reduce the total height and work in low headroom position under 7800 mm with a special "short" kelly bar for 18 m depth. The undercarriage is provided with expanding tracks 2450 - 3450mm for a perfect stability on every ground conditions. The CF8 Plus can be also provided with a special pull-down system by motoreducer feed by chain in order to grant a rotary stroke of 12000mm, useful to insert long casing pipes and also to pass quickly from the Kelly Bar mode to CFA, Soilm Mixing and Micropiles configuration.



CF8 PLUS





TORQUE 85 kNm
ENGINE POWER 120 kW
MAX DEPTH 35 m
MAX DIAMETER 1300 mm
TOTAL WEIGHT

22 t



Hydraulic piling rig CF8 PLUS

The new CF8 PLUS is powered by a Cummins Tier4 engine which grant the hydraulic system enough power to achieve (on demand) even 100 kNm torque. The machine is then provided with cinematic parallelogram and a 2 sections mast to work with a 35 m locking kelly bar, with the possibility to remove the upper mast section to reduce the total height and work in low headroom position under 7800 mm with a special "short" kelly bar for 18 m depth. The undercarriage is provided with expanding tracks 2450 - 3450mm for a perfect stability on every ground conditions. The CF8 Plus can be also provided with a special pull-down system by motoreducer feed by chain in order to grant a rotary stroke of 12000mm, useful to insert long casing pipes and also to pass quickly from the Kelly Bar mode to CFA, Soilm Mixing and Micropiles configuration.
