TES40





TORQUE 5 kNm
ENGINE POWER 42 kW
MAX DEPTH 50 - 80 m
MAX DIAMETER 250 mm
TOTAL WEIGHT
5 t

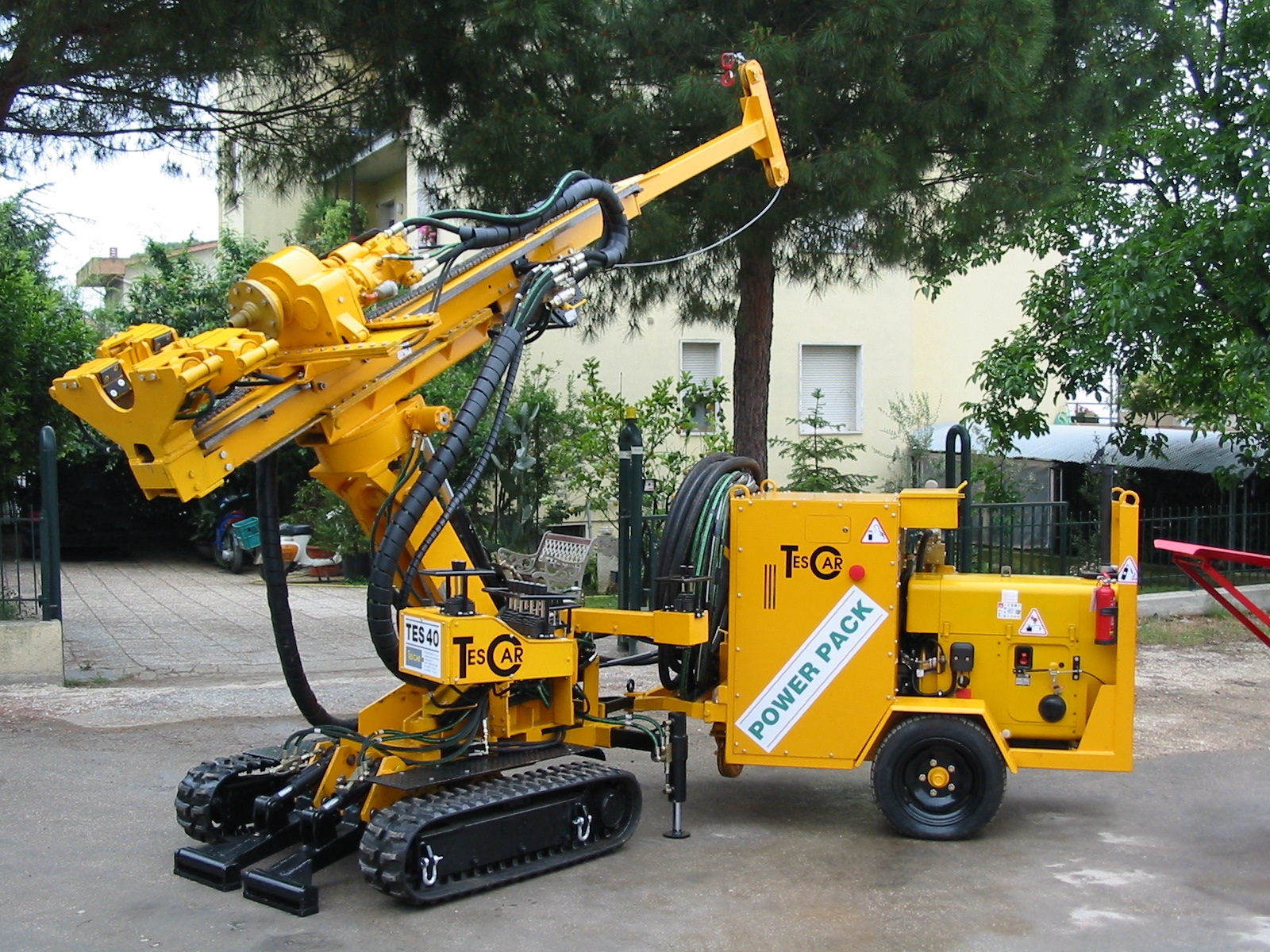

Hydraulic drilling rig TES40

Multifunctional rig for micropiles, soil investigation, core drilling and water wells. It can be provided with a hydraulic drifter, a DTH hammer and also a high frequency hammer of 750 joule for the micropiles supporting the solar panels on photovoltaic fields. The TES40 is equipped with a water pump of 20 l/min at 60 bar for the spoil of the coring samples during the soil investigations and can also be provided with a water pump of 60 l/min at 90 bar for the hole cleaning during the drilling operations. The TES40 is particularly suitable to work in limited access areas and narrow places and, thanks to the separate power pack, can work inside exhisting buildings without problems of smoke or pollution.





TES40





TORQUE 5 kNm
ENGINE POWER 42 kW
MAX DEPTH 50 - 80 m
MAX DIAMETER 250 mm
TOTAL WEIGHT
5 t

Hydraulic drilling rig TES40

Multifunctional rig for micropiles, soil investigation, core drilling and water wells. It can be provided with a hydraulic drifter, a DTH hammer and also a high frequency hammer of 750 joule for the micropiles supporting the solar panels on photovoltaic fields. The TES40 is equipped with a water pump of 20 l/min at 60 bar for the spoil of the coring samples during the soil investigations and can also be provided with a water pump of 60 l/min at 90 bar for the hole cleaning during the drilling operations. The TES40 is particularly suitable to work in limited access areas and narrow places and, thanks to the separate power pack, can work inside exhisting buildings without problems of smoke or pollution.
