TES40 COMPACT





TORQUE 5 kNm
ENGINE POWER 59 kW
MAX DEPTH 50 - 80 m
MAX DIAMETER 250 mm
TOTAL WEIGHT
5 t

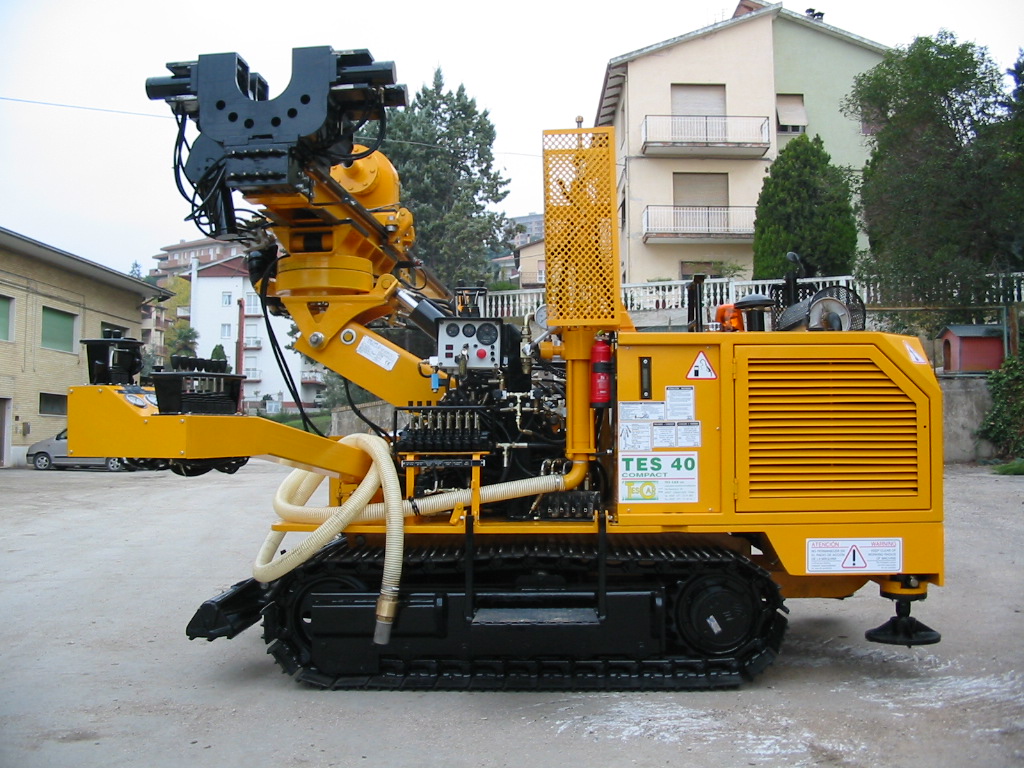

Hydraulic drilling rig TES40 Compact

Multifunctional rig for micropiles, soil investigation, core drilling and water wells. It can be provided with a hydraulic drifter, a DTH hammer and also a high frequency hammer of 750 joule for the micropiles supporting the solar panels on photovoltaic fields. The TES40 Compact is equipped with a water pump of 20 l/min at 60 bar for the spoil of the coring samples during the soil investigations and can also be provided with a water pump of 60 l/min at 90 bar for the hole cleaning during the drilling operations.





TES40 COMPACT





TORQUE 5 kNm
ENGINE POWER 59 kW
MAX DEPTH 50 - 80 m
MAX DIAMETER 250 mm
TOTAL WEIGHT
5 t

Hydraulic drilling rig TES40 Compact

Multifunctional rig for micropiles, soil investigation, core drilling and water wells. It can be provided with a hydraulic drifter, a DTH hammer and also a high frequency hammer of 750 joule for the micropiles supporting the solar panels on photovoltaic fields. The TES40 Compact is equipped with a water pump of 20 l/min at 60 bar for the spoil of the coring samples during the soil investigations and can also be provided with a water pump of 60 l/min at 90 bar for the hole cleaning during the drilling operations.
