CF10 CFA





TORQUE 100 kNm
ENGINE POWER 129 kW
MAX DEPTH 15m - 18m
MAX DIAMETER 850 mm
TOTAL WEIGHT
28 ton

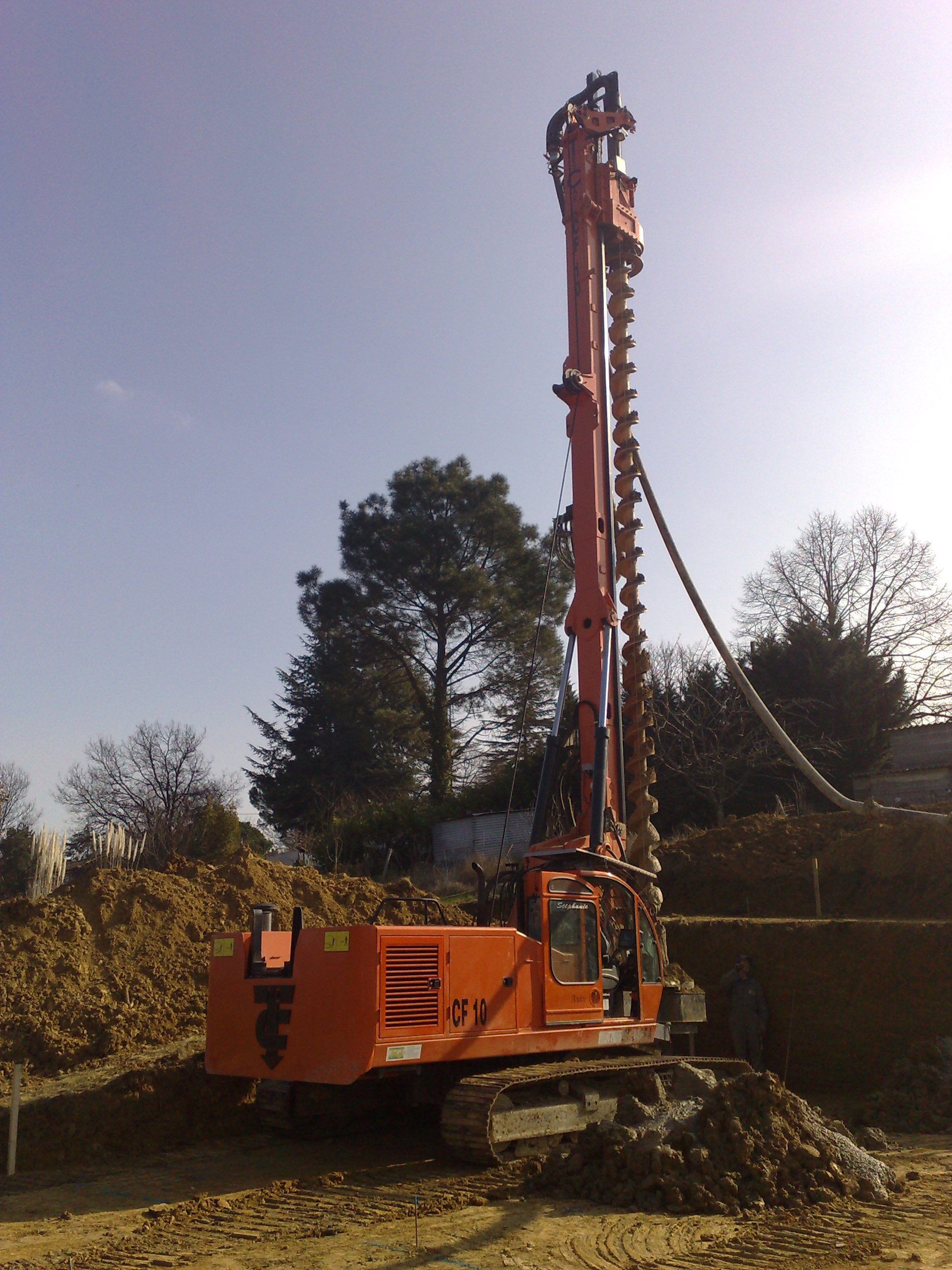

Hydraulic piling rig CF10 CFA

Provided with one section mast with a rotary stroke of 11,5 m which permit to use an 11 m continuous flight auger. Thanks to an extension pipe it's possible to achieve a total depth of 15 m. Then adding a mast extension, the rotary stroke can be improved to 14,5 m which permit to use a 14 m auger. In this configuration, thanks to an extension pipe it's possible to achieve a total depth of 18 m. Also available with an authomatic auger cleaning device, an additional pull-down winch of 3,5 ton and a computer board for the measurement of all the drilling parameters, rpm, pressure, concrete quantity, etc.





CF10 CFA





TORQUE 100 kNm
ENGINE POWER 129 kW
MAX DEPTH 15m - 18m
MAX DIAMETER 850 mm
TOTAL WEIGHT
28 ton



Hydraulic piling rig CF10 CFA

Provided with one section mast with a rotary stroke of 11,5 m which permit to use an 11 m continuous flight auger. Thanks to an extension pipe it's possible to achieve a total depth of 15 m. Then adding a mast extension, the rotary stroke can be improved to 14,5 m which permit to use a 14 m auger. In this configuration, thanks to an extension pipe it's possible to achieve a total depth of 18 m. Also available with an authomatic auger cleaning device, an additional pull-down winch of 3,5 ton and a computer board for the measurement of all the drilling parameters, rpm, pressure, concrete quantity, etc.
